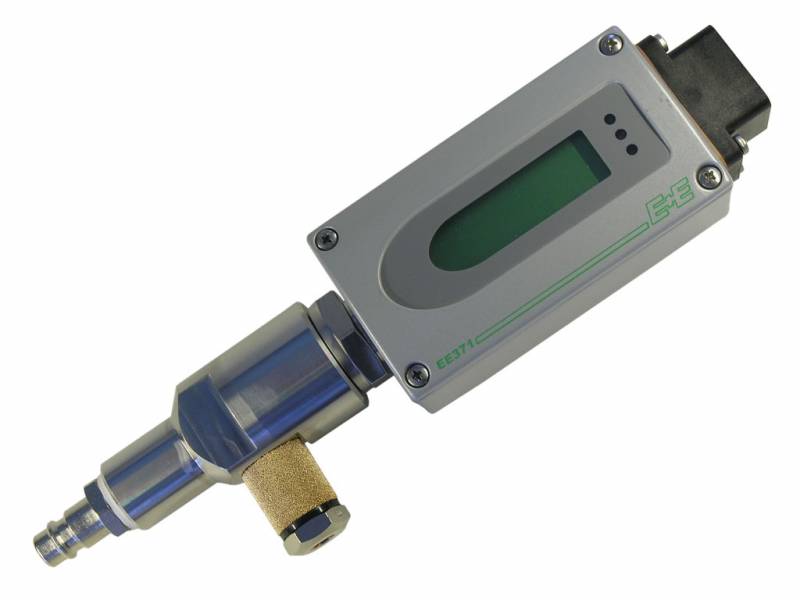

Dew point sensor / transmitter in compact design with display
The dew point transmitter EE371 with a measuring range -60...60 °C (-76...140 °F) Td is optimised for low dew point measurement in compressed air systems, dryers for plastic and other industrial processes.
The core of the EE371 dew point transmitter is the innovative E+E monolithic dew point sensor. This sensor together with the integrated auto-calibration procedure and high E+E expertise in dew point calibration result in an accuracy of <2 °C (<3.6 °F) Td.

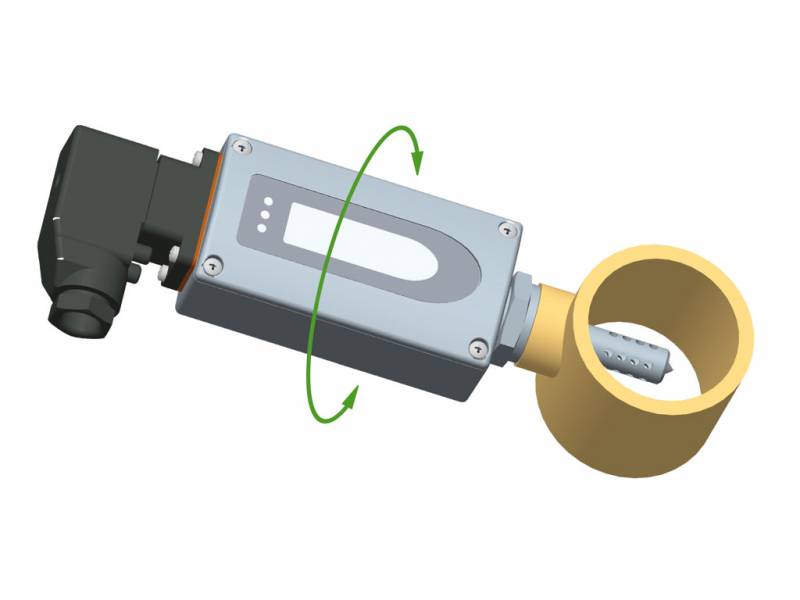

The enclosure of EE371 can be rotated by 360° so the display is easily readable in any mounting position. The EE371 is available in two versions:
The T model features two freely scalable and configurable analogue outputs for dew point, frost point or ppm volume concentration.

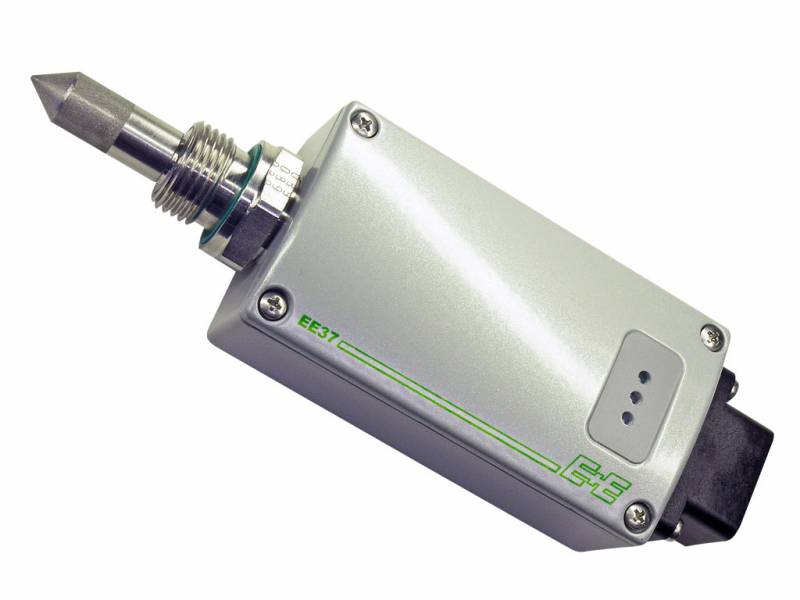

The S model offers two alarm (relay) outputs. The alarm status of is indicated by LEDs.
